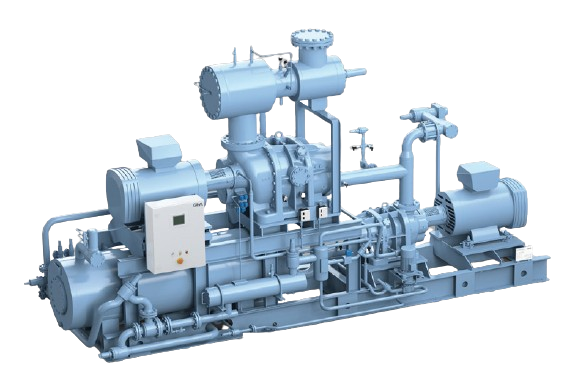

GPE is an approved packager for GEA screw compressors. These screw compressors are oil-injected twin shaft rotary positive displacement machines. They are available for single stage operation and suitable for various critical gas applications. The compressor element is manufactured at the Grasso plant in Berlin, Germany and the packaging is done at our production unit in Pune which is EIL approved for modularization.
Rotary Screw Compressors are very cost-effective for handling high volumes of gas in field gathering, vapor recovery, flash gas recovery, coke oven gas and raw biogas handling and several other applications. They are also most suitable for dirty gases and fluctuating pressures. The compressors generally run directly with an electric motor via a flexible coupling. Our screw compressor package range currently consists of 10 compressor frames, from the M and LT series. These compressor frames can handle suction volumes from 375 to 1750 m³/h and maximum discharge pressure up to 52 bar g.

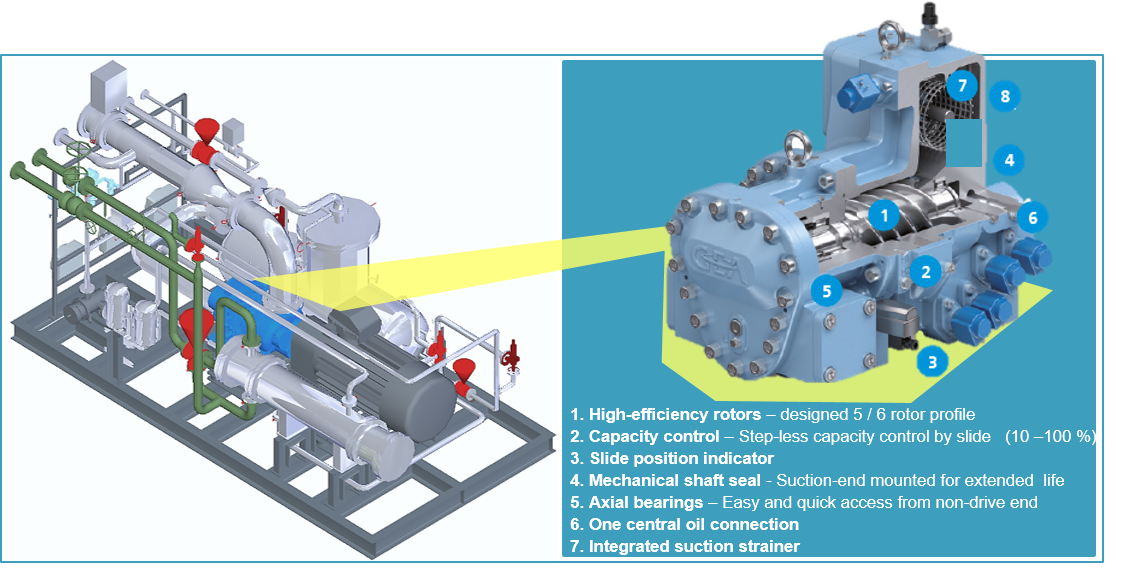

Low maintenance and high reliability are inherent with rotary screws because they have few moving parts. There are no valves, rings or packing to wear out or cause loss of efficiency. Smooth operation results from no unbalanced forces and no pressure pulsation. Special foundations are not necessary and there are no piping vibrations from pressure pulsation.
The minimum suction temperature for these compressors is -60°C. The maximum discharge temperature for these compressors is 120°C.
